Fuses and Relays Iveco Daily (MK2; 2006 - 2011)

Detailed fuse and relay diagrams for the Iveco Daily MK2 commercial vehicle (2006-2011). Professional diagnostic information for quick troubleshooting of electrical faults.

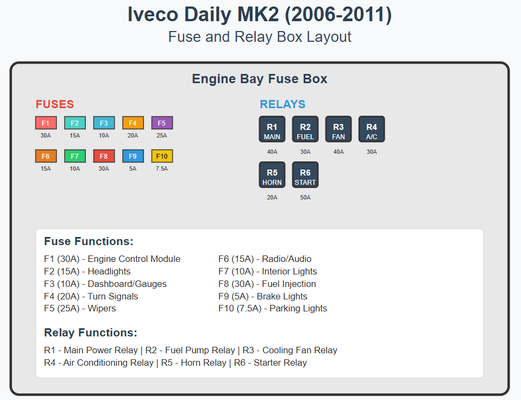

  • Location of all fuses in the engine compartment
  • Passenger compartment fuse box diagram
  • Additional fuse boxes (if any)
  • Color coding by current rating
  • Precise positioning of each element
  • Main engine power relays
  • Air conditioning and heating system relays
  • Lighting and signaling relays
  • Fuel system and ignition relays
  • Wiring diagrams and pinouts

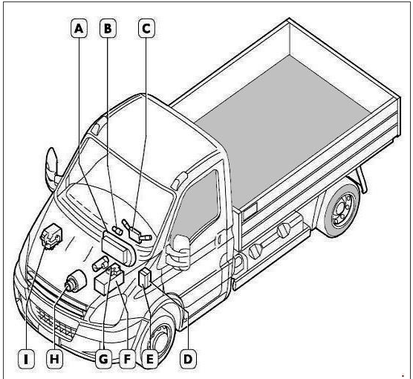

General arrangement of electronic units Iveco Daily MK2

A Instrument cluster

B Ignition key

C Steering column switch block

D Central interconnection unit "CPL"

E Control unit

F Battery

G Central distribution unit "CBA"

H Generator

I Central interconnection unit "CVM".

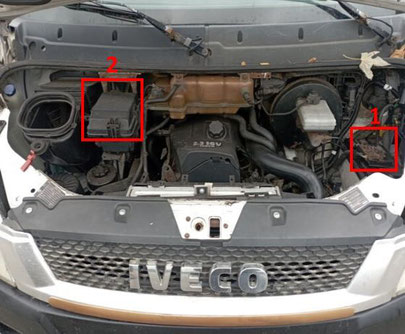

Blocks in the engine compartment

1: "CBA" - distribution central block

2: "CVM" - interblock central block

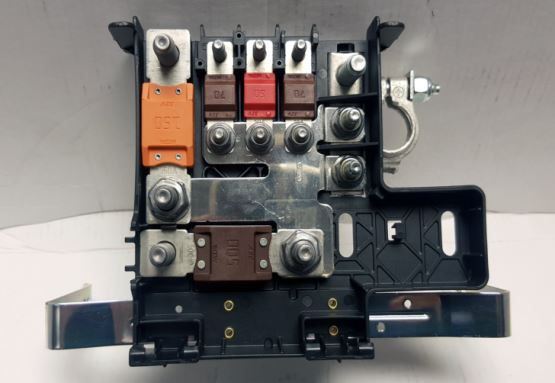

Fuse Block #1 "CBA"

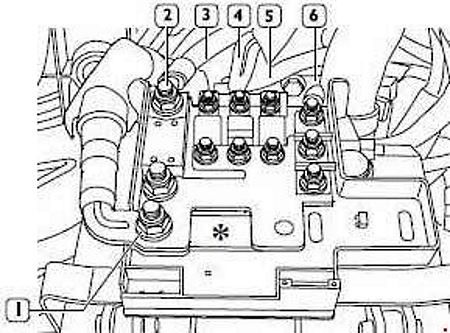

Fuse Box #1 "CBA" Diagram Iveco Daily MK2
Fuse Box #1 "CBA" Diagram Iveco Daily MK2

№ Description, A

1 Starter / generator 500 A

2 to the ”CVM” block 150 A

3 +30 to “CPL” 70 A

4 70 A

5 +30 to the OPT block 50 A

6 +30 to ”CPL” -

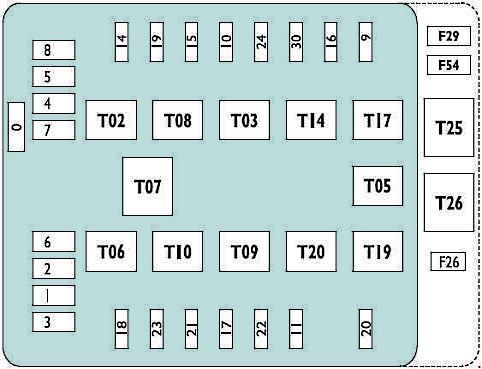

Fuse Block #2 "CVM"

T02 Right and left high beam headlights 20 A

T03 Horn 20 A

T05 Baruffaldi power supply 20 A

T06 Mirror and windshield heater 20 A

T07 Side marker lights 20 A

T08 Heater or climate control fans 20 A

T09 EDC16 (main relay) 20 A

T10 Fuel pump 20 A

T14 Left and right front fog lights 20 A

T17 Windshield washer 20 A

T19 Fuel filter heater 20 A

T20 Diagnostic module 20 A

T25 Windshield wiper on/off 10/20 A

T26 Windshield wiper 1st/2nd speed 10/20 A

0 Spark plugs 60 A

1 ABS or ESP 40 A

2 30 A

3 ESV1 ECU (automatic transmission) 30 A

4 30 A

5 Starter switch 30 A

6 Heated mirrors and windshield 20 A

7 Side marker lights 20 A

8 Heater or climate control fans 30 A

9 Windshield washer 20 A

10 Horn 7.5 A

11 EDC16 (secondary loads) 10 A

14 Right high beam headlight 7.5 A

15 Left high beam headlight 7.5 A

16 EDC16, T02, T14, Auxiliary heater 5 A

17 EDC16 (primary loads) 15 A

18 ESV1 ECU (automatic transmission) 10 A

19 Baruffaldi 5 A

20 Fuel filter heater 25A

21 Iveco Daily fuel pump fuse 15A

22 EDC16 (main loads) 25A

23 Additional heater 10A

24 ESV1 ECU (automatic transmission), PTO 15A

26 Trailer socket 10A

29 Air suspension 40A

30 Left and right front fog lights 15A

54 Air suspension 40A

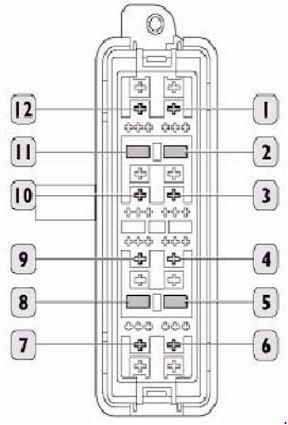

Additional fuse box

Installed on some modifications.

Relays

T04 20A Turn Signals

T16 10A Work Lights

T15 - Empty

T22 20A A/C Compressor Engagement

T18 20A Baruffali Cut-Out

T24 20A PTO Engagement

T23 20A A/C Compressor

T21 20A Compressor Engagement Signal for EDC 16



Fuses

F55 10A Turn Signals

F25 10A Trailer Connector

F28 15A APU Power Supply

F27 10A Work Lights

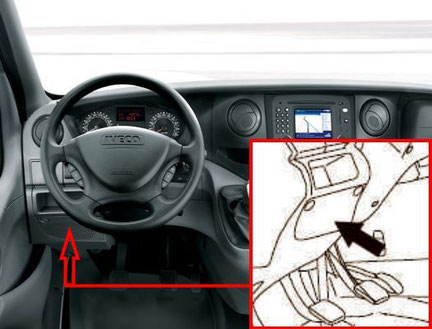

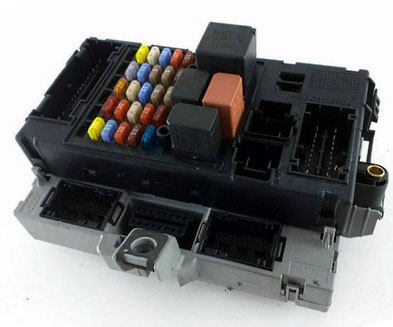

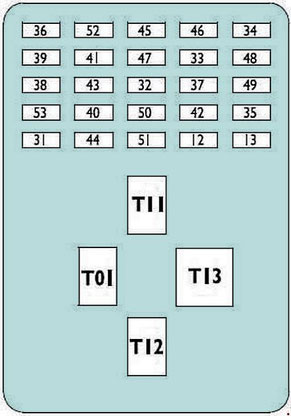

The fuse box is behind the plastic cover on the left side of the dashboard.

12 Right low beam headlight 7.5 A

13 Left low beam headlight - headlight position rectifier 7.5 A

31 Relay T08-T17 in CVM and BC 3 A

32 Turn-and-transfer door 15 A

33 Air heater / Iveco Daily 2 cigarette lighter fuse 15 A

34 12 V socket 20 A

35 ABS / ESP 10 A

36 Central locking 20 A

37 Brake light and various load switches 7.5 A

38 BC / Power supply for internal roof light relays 10 A

39 Car radio - chronotachograph 15 A

40 Rear right window heating 10 A

41 Rear left window heating 10 A

42 Reversing light switch 5 A

43 Wipers 20 A

44 Empty -

45 Empty -

46 Empty -

47 Driver's window 25 A

48 Passenger window 25 A

49 Climate control system control unit, radio, heated seats 15 A

50 Airbags 5 A

51 Chrono-tachograph 5 A

52 Empty -

53 Instrument cluster, rear fog lights 7.5 A



Relay

T-01 Right and left low beam headlights

T-11 Rear window heating relay

T-12 Cigarette lighter / 12V socket / heater / climate control system

T-13 Power unlock from key
