Case JX60, JX70, JX80, JX90, JX95 Wiring Diagram

Download
Case JX-Series Instruments, Components
Case JX60, JX70, JX80, JX90, JX95
Instruments, Components.pdf
Adobe Acrobat Document 1.2 MB
Download
Case JX-Series Charging System Wiring Diagram
Case JX60, JX70, JX80, JX90, JX95
Charging System.pdf
Adobe Acrobat Document 2.5 MB
Download
Case JX-Series Electrical Circuits
Case JX60, JX70, JX80, JX90, JX95
Electrical Circuits.pdf
Adobe Acrobat Document 1.6 MB
Download
Case JX-Series Starting System Wiring Diagram
Case JX60, JX70, JX80, JX90, JX95
Starting System.pdf
Adobe Acrobat Document 1.4 MB
Download
Case JX-Series Battery Wiring Diagram
Case JX60, JX70, JX80, JX90, JX95
Battery.pdf
Adobe Acrobat Document 524.1 KB

Case JX60, JX70, JX80, JX90, JX95 Wiring Diagrams – detailed electrical diagrams for JX series tractors. These diagrams contain information on wiring, connections, fuses, relays, and electrical components. These materials assist in troubleshooting, finding breaks, repairing the electrical system, and properly connecting equipment.

Case JX-Series Electrical Wire Colour Coding

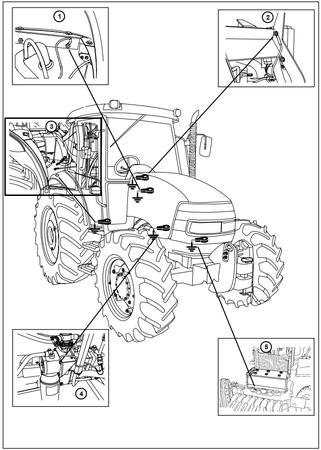

Case JX60, JX70, JX80, JX90, JX95 Ground Locations

Case JX60, JX70, JX80, JX90, JX95 Ground Locations
Case JX60, JX70, JX80, JX90, JX95 Ground Locations

1. Instrument cluster ground point



2. Fuse box ground point



3. Cab floor ground point



4. Steering pump pressure sensor ground point



5. Battery ground point

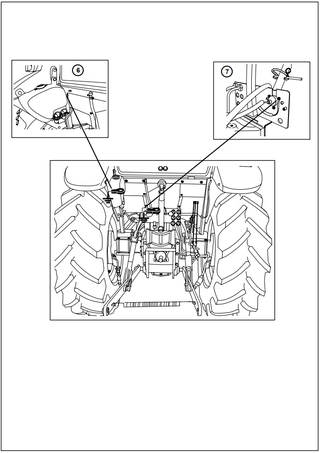

6. Windscreen washer pump ground point.



7. 7 pin trailer connector ground point



8. Evaporator top ground point



9. Upper cab ground point



10. Protective diode ground point

Case JX-Series Common Electrical and Wiring Problems

Common Electrical Malfunctions

  • Oxidation of contacts and connectors – especially at the connections under the cab and near the battery.
  • Ground problems – a poor negative connection causes instrument panel malfunctions and engine starting problems.
  • Weak battery – rapid discharge during prolonged inactivity or in cold weather.
  • Alternator failure – reduced charge, flickering battery light on the dashboard.
  • Blown fuses due to short circuits in the wiring harness or auxiliary equipment.

Wiring faults

  • Wiring harnesses chafing against the frame or sharp edges in the engine compartment.
  • Insulation damage from vibration and high temperatures.
  • Moisture ingress into wiring harnesses, causing wire corrosion and intermittent breaks.
  • Poor quality "repair" connections (twists, electrical tape instead of factory connectors).

Equipment malfunctions

  • Incorrect readings from oil pressure, temperature, or fuel sensors.
  • Engine lights and headlights are unstable (dimming, flickering).
  • Instrument cluster failures due to poor connections or problems in the main wiring harness.
  • Engine starting problems due to damaged wiring to the starter or relay.
